Data Storage and Visualisation
OPENVISION IoT Dashboard
IoT Dashboard provides an easy-to-use web-based dashboard to monitor all IoT Sensors, it also provides device configurations, device healthiness monitoring, alert dashboard and many reports.
MOST COMMON IOT SENSORS
Indoor Air Quality Sensor
- Indoor Air Quality Index (IAQ)
- Battery or DC Power
- 3 models: General Indoor, Toilet, Car Park
- NB-IoT / LoRaWAN
Reading includes: Temperature, Humidity, CO2, TVOC, PM2.5, HCHO, NH3, H2S, CO, NO2...

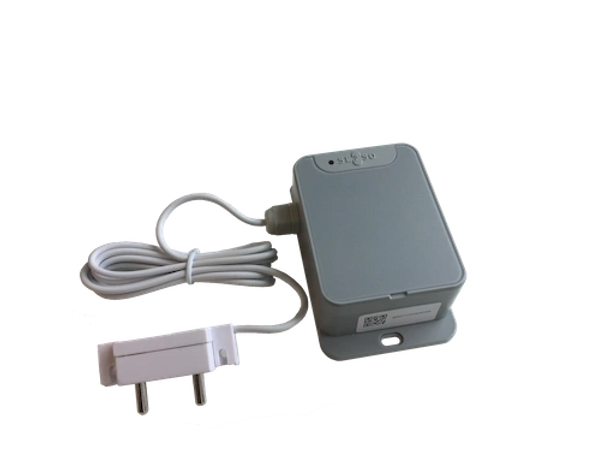

Water Leakage Sensor
- 0-100 analog measurement resolution
- Configurable threshold to avoid false alarm
- Stainless steel 2-pin water probe
- Battery operation, up to 3 years battery life
- NB-IoT / LoRaWAN
Temperature and Humidity Sensor
- Temperature range: -20 to 60C
- Humidity: 10% to 100%
- Alert when exceed threshold
- Battery operation, up to 3 years battery life
- NB-IoT / LoRaWAN

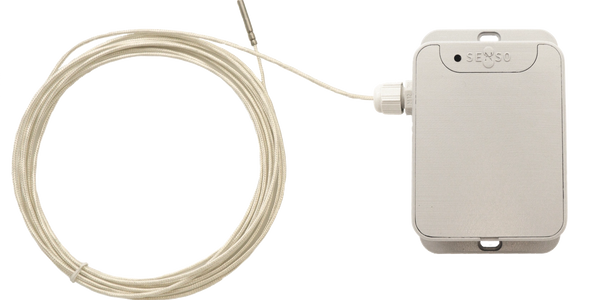

Extreme Temperature Sensor
- Temperature range: -200 to 250C
- PT100 temperature probe
- Alert when exceed threshold
- Battery operation, up to 3 years battery life
- NB-IoT / LoRaWAN

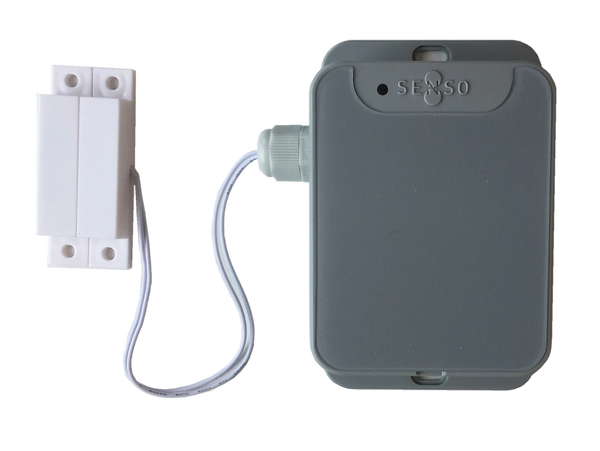

Dry Contact Sensor
- Detect Open/Close, report status change
- Support PIR, Magnetic sensor and other dry contact device output
- Battery operation, up to 3 years battery life
- NB-IoT / LoRaWAN
